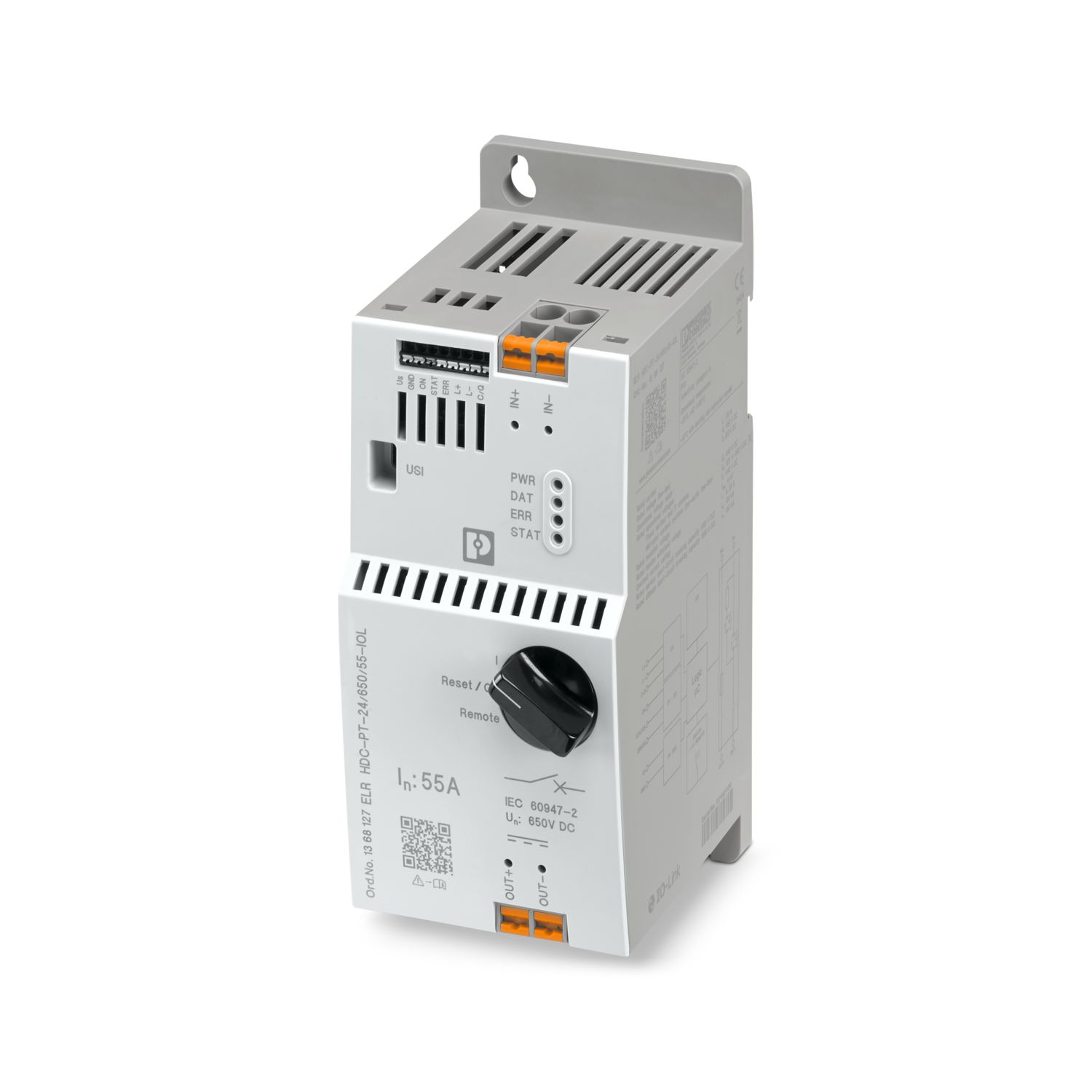

ELR HDC-PT-24/650/55-IOL - 1368127

Liên hệ
1368127
1368127
Phoenix Contact
Còn hàng

ELR HDC-PT-24/650/55-IOL - 1368127 DC circuit breaker  cho bảo vệ , giám sát và đóng cắt  tải DC công suất lớn với điện áp  0 V DC ... 800 V DC, và dòng tới 55 A. Với công nghệ hybrid  tích hợp bên trong cho phép ngắt mạch khi xảy ra ngắn mạch với thời gian cực nhanh  <10 μs , tích hợp truyền thông.

  • Chia sẻ qua viber bài: ELR HDC-PT-24/650/55-IOL - 1368127
  • Chia sẻ qua reddit bài:ELR HDC-PT-24/650/55-IOL - 1368127

Main features and functions at a glance

We offer you the compact DC circuit breaker with hybrid technology and intuitive parameterization. Protect, monitor, and switch high DC loads with data logging, network capability, and sustainable efficiency increases through energy recovery.

  • Overall width: 85 mm
  • Operating current: 10 A ... 55 A
  • Communication interfaces: IO-Link, DIO
  • Operating voltage: 0 V ... 810 V
  • Protection against overcurrent and overvoltage/undervoltage
  • Intuitive configuration with clipx ENGINEER
  • Integrated pre-charging for intermediate circuits
  • All-position electrical isolation with relay



Topology: Possible structure of an industrial DC grid
