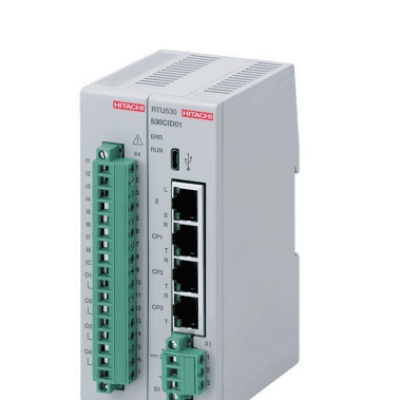

- 1x Ethernet 10/100 BaseT - 3x Serial (2x RS485, 1x RS232) - 1x USB configuration interface - High speed IO Bus up to 10 IO devices - Integrated Flash memory card - Integrated IO module with 8 binary inputs and 4 command outputs - Integrated power supply unit for 24VDC

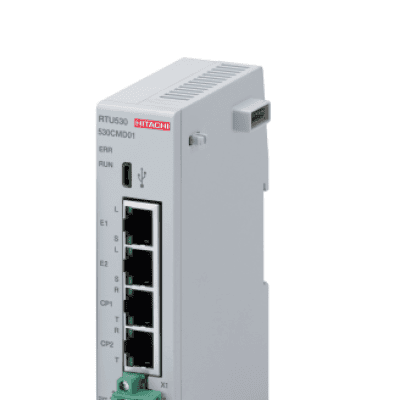

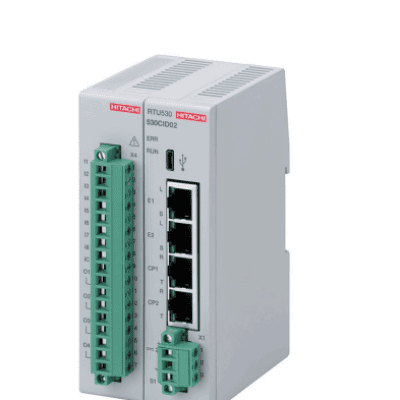

- 2x Ethernet 10/100 BaseT - 2x Serial (1x RS485, 1x RS232) - 1x USB configuration interface - High speed IO Bus up to 10 IO devices - Integrated Flash memory card - Integrated IO module with 8 binary inputs and 4 command outputs - Integrated power supply unit for 24VDC

- Up to 4 CMU modules supported​ - Max 8 Ethernet ports, max 8 serial ports on DIN rail portfolio available​ - Ethernet port support 10/100/1000 baseT networks​ - Serial ports can be configure as RS232 or RS485, galvanic isolated​ - Each module has an own Power supply (redundant power supply solution) ​

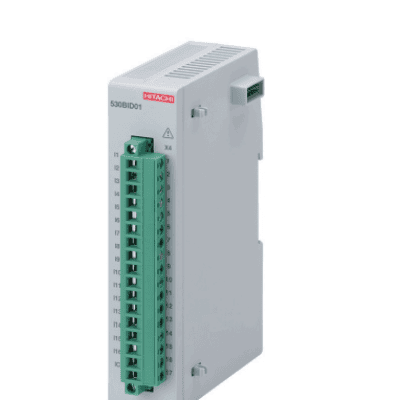

- 16 binary inputs and common return - Galvanic isolated via opto coupler - 1 LED per input - R0001: 24-60 VDC - R0002: 110/125 VDC - Time stamping: 1 ms - Single or double indication - Counter inputs - Bit string indication (8 bit, 16 bit)

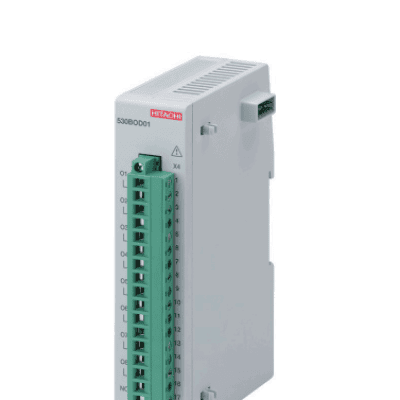

- 8 command outputs, with relay outputs - 1 LED per output - Max. Switching voltage: 150 VDC - Continuous current: 5A - Max. breaking current: 5A @ 30 VDC, resistive load - Single or double commands - Regulation commands - Digital set points (8 bit)

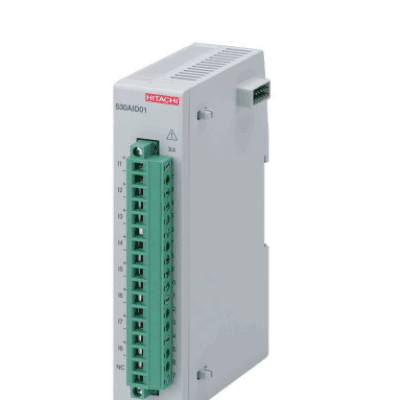

- 8 analog inputs - R0001: for mA signals (2.5 mA, 5 mA, 10 mA, 20 mA, 40 mA, unipolar, bipolar) - AD converter resolution: 16 bit - Automatic zero calibration - Accuracy for mA signals: 0.2%

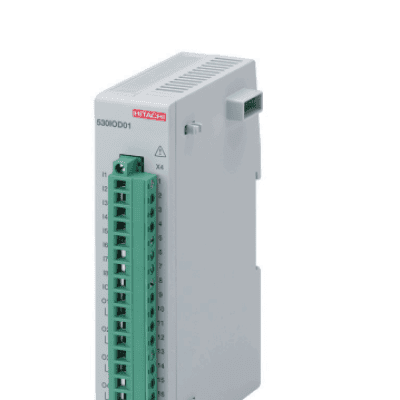

- 8 binary inputs (opto coupler) and common return - 4 command outputs, with relay outputs - 1 LED per in-/output - Process voltage 24..60VDC - Max. Switching voltage: 60 VDC - Continuous current: 5A - Max. breaking current: 5A @ 30 VDC, resistive load - To monitor 3 switching device and to operated one device (e.g. RMU’s)

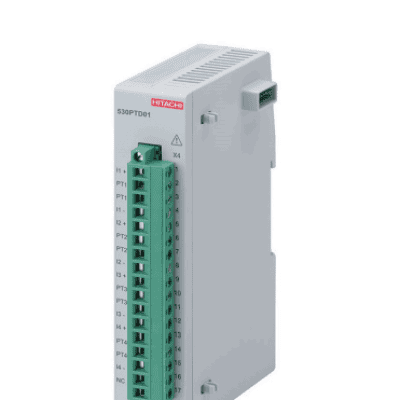

- 2/3/4 wires per channel - Resolution: 16 bit - Accuracy: Class B with a corresponding sensor - Measuring range: -25 °C…150 °C - Overrange: -200 °C…200 °C - Measuring current: 1 mA

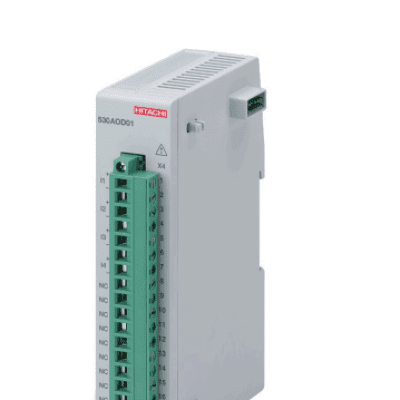

- 4 analog outputs - for mA signals (2.5 mA, 5 mA, 10 mA, 20 mA (4..20 mA), unipolar, bipolar) - DA converter resolution: 16 bit - Accuracy for mA signals: < 0.2%
