CHARX connect professional, HPC DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), supports four-conductor measurement technology, with analog temperature sensors, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, CCS type 2, based on IEC 62196-3, 375 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 6 m, black, straight.

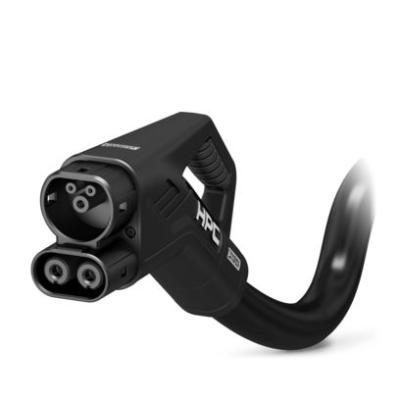

CHARX connect professional, HPC DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), supports four-conductor measurement technology, with analog temperature sensors, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, CCS type 2, based on IEC 62196-3, 375 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 7 m, black, straight.

CHARX connect professional, HPC DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), supports four-conductor measurement technology, with analog temperature sensors, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, CCS type 2, based on IEC 62196-3, 375 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 10 m, black, straight.

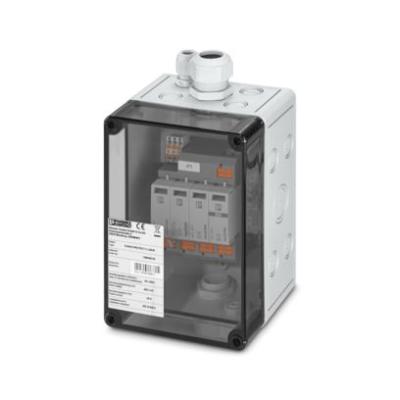

CHARX protect retrofit, surge protection set for protecting charging stations with an output of 11 kW ... 22 kW, such as home chargers. Surge protective device consisting of a base element with Push-in connection technology, remote indication contact, and protective plugs, nominal voltage: 230 V AC, 3+1 wiring.

CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with replaceable mating face frame, with replaceable DC power contacts, with connected single-core wires for four-conductor measurement, without panel feed-through, with digital temperature sensors, CCS type 2, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 6 m, black, straight.

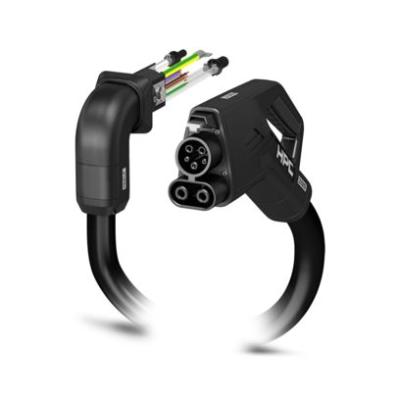

CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with charging connector holder, with replaceable mating face frame, with left-hand angled panel feed-through, with variable-speed fan, Single-core wires for four-conductor measurement are not connected and are non-functional, CCS type 1, SAE J1772, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 5 m, black, straight.

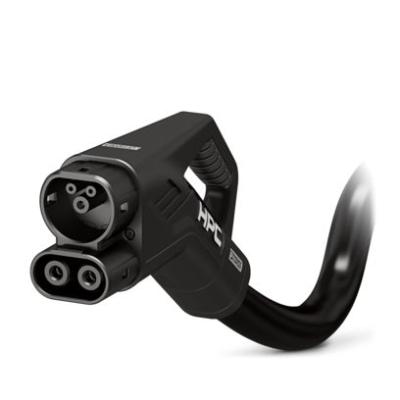

CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with replaceable mating face frame, with replaceable DC power contacts, with connected single-core wires for four-conductor measurement, without panel feed-through, with digital temperature sensors, CCS type 2, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 5 m, black, straight.

CHARX connect professional, HPC DC charging cable, with vehicle charging connector and open cable end, Functional prototype, for charging electric vehicles (EV) with direct current (DC), supports four-conductor measurement technology, with analog temperature sensors, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, CCS type 2, based on IEC 62196-3, 375 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 7 m, black, straight.

CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with replaceable mating face frame, with replaceable DC power contacts, without panel feed-through, Single-core wires for four-conductor measurement are not connected and are non-functional, CCS type 2, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 6 m, black, straight.
