- 8 command outputs, with relay outputs - 1 LED per output - Max. Switching voltage: 150 VDC - Continuous current: 5A - Max. breaking current: 5A @ 30 VDC, resistive load - Single or double commands - Regulation commands - Digital set points (8 bit)

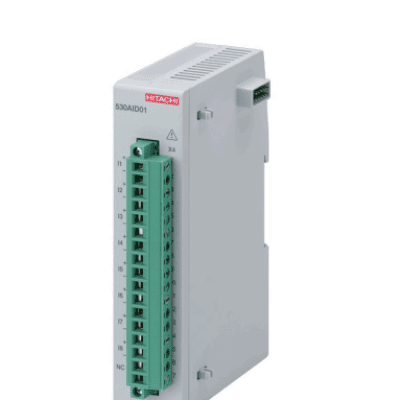

- 8 analog inputs - R0001: for mA signals (2.5 mA, 5 mA, 10 mA, 20 mA, 40 mA, unipolar, bipolar) - AD converter resolution: 16 bit - Automatic zero calibration - Accuracy for mA signals: 0.2%

- 8 binary inputs (opto coupler) and common return - 4 command outputs, with relay outputs - 1 LED per in-/output - Process voltage 24..60VDC - Max. Switching voltage: 60 VDC - Continuous current: 5A - Max. breaking current: 5A @ 30 VDC, resistive load - To monitor 3 switching device and to operated one device (e.g. RMU’s)

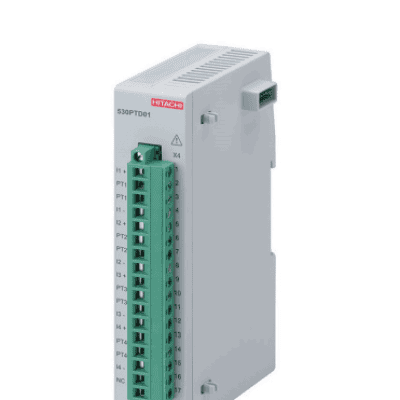

- 2/3/4 wires per channel - Resolution: 16 bit - Accuracy: Class B with a corresponding sensor - Measuring range: -25 °C…150 °C - Overrange: -200 °C…200 °C - Measuring current: 1 mA

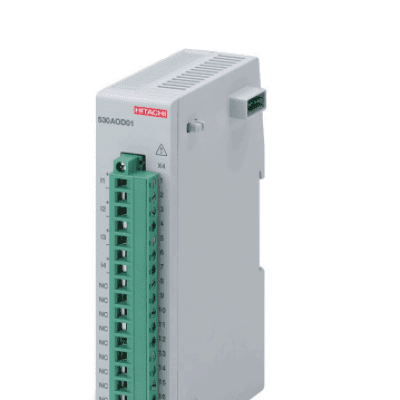

- 4 analog outputs - for mA signals (2.5 mA, 5 mA, 10 mA, 20 mA (4..20 mA), unipolar, bipolar) - DA converter resolution: 16 bit - Accuracy for mA signals: < 0.2%

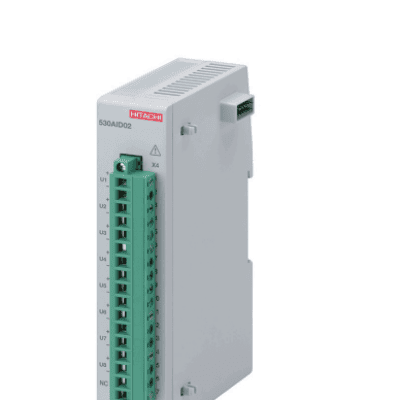

- 8 analog inputs  - R0001: for V signals (± 1 V DC, ± 2 V DC, ± 10 V DC, ± 20 V DC) - AD converter resolution: 16 bit  - Automatic zero calibration  - Accuracy for V signals: ≤ 0.1 %

- 4 x current Inputs (IL1, IL2, IL3, I0) - 3 x voltage inputs (UL1, UL2, UL3) - Measurement functions bases on IEC61000-4-30  - Support frequency 50, 60 and 16.67 Hz - Supports Low Power CTs and VTs (resistive voltage divider). - Compatible to sensors and other LPCT/VT according to IEC61869-1. - LPCT support 225 mVAC (In), 22.5 mVAC and 150 mVAC Imax: 12x In - LPVT: 3.25 VAC (Un), Umax: 2x Un - Measurement category CAT0, 50VAC - Measuring of Line current, line voltages, residual current Ires - Calculated values - Line voltage UL12, UL23, UL31 - 4-Quarant Power and Energy - Power factor per phase and total - Current I0 - THD - Sampling rate: 8 kHz - Up to 25th harmonics.

- Applicable in primary and secondary distribution automation​ - Single feeder up to 4 feeder applications​ - More feeder possible via extension IO​ - Support of 16,7 Hz, 50 Hz and 60 Hz three-phase power net works​ - Power and energy calculation​ - CAT III, 300VAC, CAT IV 150VAC - 3x line current​ - 1x neutral current or calculated​ - 3x line voltages​ - Alternative also solution with 2 line voltages supported (4I2U)​ - Sampling rate 8 kHz​ - Accuracy (50/60 Hz): ​ - U,I: ≤ 0,2%​ - P, Q, S, E, cos phi: ≤ 0,5%​ - Frequency: ≤ 0,1% ​ - THD total, per phase: ≤ 3%

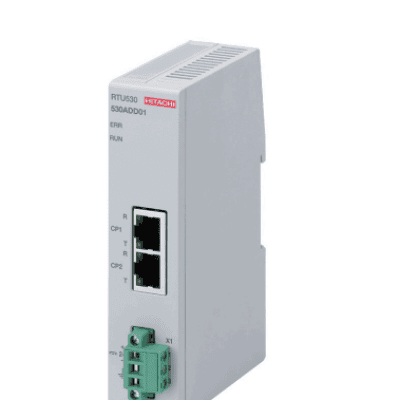

- DIN rail mounted module for RTU530 extension IO - Integrated 24 VDC power supply - Up to 10 local IO modules, high speed IO bus - Up to 10 different locations - Input: RJ45 RS485 - Output: RJ45 RS485
